tspark

---

TSpark Engine

TSpark is a lightweight and modular 2D and 3D game engine written in TypeScript, using WebGL (via TWGL.js) for rendering. It follows an Entity-Component-System (ECS) approach to make game logic flexible and extensible.

✨ Features

• ECS Architecture: Organize your game objects cleanly with entities, components, and systems
• 2D & 3D Rendering: Based on TWGL.js, a lightweight WebGL helper, for performant rendering
• Modular Systems: Add logic like movement, physics, or AI through standalone systems
• Simple Scene Management: Create and manage multiple worlds and scenes
• Flexible Component System: Define your own data containers for your entities
• Dynamic Render System: Easily switch between different rendering layers
• TypeScript First: Full type safety and IntelliSense support

📚 Documentation

Read the full documentation →

• Getting Started - Quick start guide
• Core Concepts - Understanding ECS architecture

🚀 Quick Start

Installation

npm install

Run Development Server

npm run tspark:dev

This starts a Vite server that serves the examples under src/examples.

Your First Scene

import { TSpark } from './app';
import { DefaultRenderer, component3D } from './engine';

// Initialize the engine
const tspark = new TSpark({
  renderer: new DefaultRenderer(),
  size: { height: 600, width: 800 },
});

// Create a world and scene
const world = tspark.createWorld('MyWorld');
const scene = world.createScene('MyScene');

// Create a camera
const cameraEntity = scene.createEntity();
scene.setActiveCameraEntity(cameraEntity);
const camera = new component3D.Camera3();
camera.position = new component3D.Position3({ z: 15 });
scene.getComponentStore<component3D.Camera3>(component3D.Camera3.name)
  .add(cameraEntity, camera);

// Create a 3D box
const boxEntity = scene.createEntity();
const box = new component3D.Box3();
box.position = new component3D.Position3();
scene.getComponentStore<component3D.Box3>(component3D.Box3.name)
  .add(boxEntity, box);

// Start the engine
tspark.start();

🎬 Demo

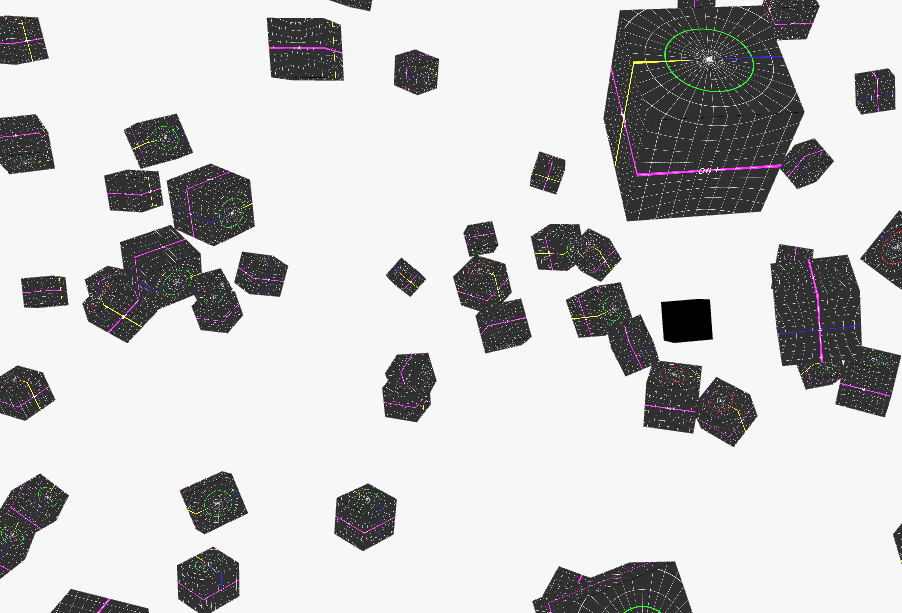

Here is a brief demonstration of the stress test, rendering and rotating several hundred cubes simultaneously.

Example of free camera controls in a 3D editor space.

🏗️ Architecture

TSpark follows a clean Entity-Component-System architecture:

• Entities: Unique identifiers for game objects
• Components: Data containers that can be attached to entities
• Systems: Logic processors that operate on entities with specific components
• Worlds: Top-level containers that manage scenes and systems
• Scenes: Collections of entities within a world

TSpark
  └── World(s)
       ├── Scene(s)
       │    ├── Entity
       │    │    └── Component(s)
       │    └── ComponentStore
       └── System(s)

Learn more about ECS → �️ Available Scripts

Script	Description
npm run tspark:dev	Start development server with hot reload
npm run tspark:build	Build for production
npm run docs:dev	Start documentation development server
npm run docs:build	Build documentation for production
npm run docs:api	Generate API documentation with TypeDoc

📁 Project Structure

TSpark/
├── src/
│   ├── engine/              # Core engine code
│   │   ├── core/            # Core systems (ECS, rendering, game loop)
│   │   │   ├── renderer/    # Rendering backend and layers
│   │   │   ├── types/       # TypeScript type definitions
│   │   │   └── utils/       # Utility functions
│   │   └── features/        # Feature systems (camera, input, movement)
│   ├── examples/            # Example projects
│   │   ├── simple-player/   # Basic 3D example
│   │   ├── editor-world/    # Editor example with camera controls
│   │   └── twgl/            # WebGL rendering examples
│   └── app.ts               # Main TSpark class
├── public/                  # Static assets
│   ├── shader/              # GLSL shader files
│   ├── fonts/               # Bitmap and SDF fonts
│   ├── models/              # 3D model files
│   └── ui/                  # HTML/CSS UI overlays
├── docs/                    # Documentation
│   ├── guide/               # User guides
│   ├── examples/            # Example tutorials
│   ├── api/                 # Auto-generated API docs
│   └── .vitepress/          # VitePress configuration
└── index.html               # Entry point

🔧 Technologies

• TypeScript - Type-safe development
• TWGL.js - WebGL helper library
• Vite - Fast build tool and dev server
• TypeDoc - API documentation generation
• VitePress - Documentation site generator

│   ├── engine/           # Core engine code
│   │   ├── core/         # Core systems (ECS, rendering, game loop)
│   │   └── features/     # Feature systems (camera, input, movement)
│   ├── examples/         # Example projects
│   │   ├── simple-player/   # Basic 3D example
│   │   ├── editor-world/    # Editor example
│   │   └── twgl/            # WebGL examples
│   └── app.ts            # Main TSpark class
├── public/               # Static assets (shaders, fonts, models)
├── docs/                 # Documentation files
└── index.html            # Entry point

🤝 Contributing

Contributions are welcome! Feel free to open issues or submit pull requests.

💡 Development Workflow

1. Fork the repository
2. Create a feature branch (git checkout -b feature/amazing-feature)
3. Make your changes
4. Test your changes thoroughly
5. Commit your changes (git commit -m 'Add amazing feature')
6. Push to the branch (git push origin feature/amazing-feature)
7. Open a Pull Request

🔗 Links

• Documentation - Full documentation
• GitHub - Source code repository

---

Made with ❤️ by Niklas Wockenfuß
